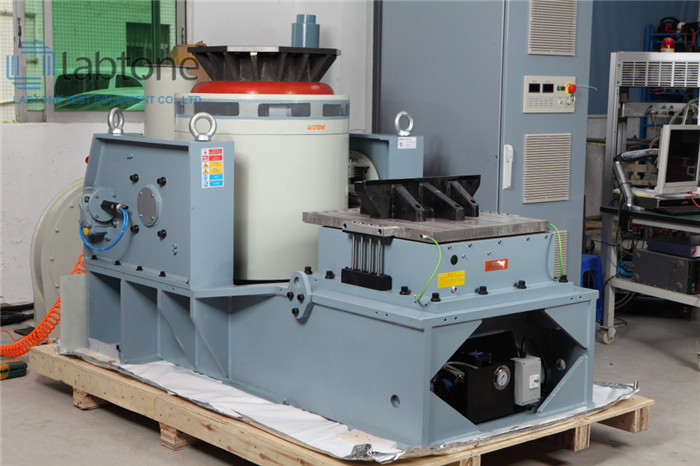

ISTA Standard 30 KN Vibration Table Testing Equipment For Transportation Simulation

  • 1
  • 2
  • 3

Brand Name : LABTONE

Model Number : EV430

Certification : CE / ISO

Place of Origin : Dongguang, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 15 Sets / Month

Delivery Time : 45 Working Days

Packaging Details : Plywood Case with Vacuum Packing

Sine Force Peak : 30 kN (3000 kg.f)

Max Acceleration : 100g

Max Velocity : 2.0 cm/s

Frequency Range : 2-2500 Hz

Max Displacement : 100 mm

Power Supply : 3-phase AC 380V / 50Hz

Max. Payload : 500kg

VIbration Controller : Random, Swept sine, Classical Shock

Contact Now

ISTA Standard 30 KN Vibration Table Testing Equipment For Transportation Simulation



Equipment Configuration



Item Configuration Qty.
1. Vibration shaker COMBO
  A30F44 shaker (including Pneumatic Centering Controller) 1 set
  B752 blower (including silencer and 5M Duct ) 1 set
  Head Expander VT100CM 1 set
  Horizontal Slip Table HG100M (including Shaker Rotation System) 1 set
3. Shaker Controller


Vcs5X-4 Shaker Controller

Hardware: 4ch input/1ch output,

Application: Random/Swept Sine/Classic Shock/RSTD

 1 set
  Accelerometers (Including Length 7m low noise BNC-M5 cable) 2 set
  PC System(Including computer mainframe, monitor, mouse and keyboard) 1 set
2. Power Amplifier
  LA30k power amplifier(including Field power supply) 1 set
3 Documentation
  Operation Manual, Test report, Packing List 1 set





Technical Parameters



Shaker Specifications A30F44
Peak Sine (Pk) 3200Kg.f peak (32KN)
Random (RMS) 3200Kg.f r.ms (32KN) @ISO5344
Shock (Pk) 6400Kg.f peak (64KN) @6ms
Usable Frequency 1～3000Hz
Maximum Displacement (p-p) 100mm
Max. velocity 2m/s
Max. acceleration Sine:85(833 m/s2)；Random: 60G (588 m/s2)
Vertical Load Support 500 kg

Body Suspension Natural

Frequency (Thrust Axis)

 Less than 2.5 Hz
Armature Diameter Ф442 mm
Armature Weight 35kg

Fundamental Resonance

Frequency (Bare table)

 2,500 Hz (nom.) +/- 5%

Load Attachment

Points (Standard)

 24x M10 inserts
Stray Flux Density ＜10gauss
Allowable partial force 500.N.M
Shaker dimensions 1235mmL×1000mmD×1230mmH
Weight of Shaker About 2800Kg
Power Amplifier Specifications LA30k
Rated Output Capacity 30KVA
Signal to Noise Ratio Greater than 65 dB
Amplifier Efficiency Greater than 90%
Amplifier Overall Dimensions 620mmx960mmx1500mm





Customer Service:





Warranty: 12 months from delivery, lifelong time maintenance.

After-sale service: feedback within 4-8 hours after getting the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification



Welcome to contact us with your vibration test inquiry.





Application:



ISTA Standard 30 KN Vibration Table Testing Equipment For Transportation Simulation

ISTA Standard 30 KN Vibration Table Testing Equipment For Transportation Simulation
